Cable Cutters

Light Weight Cable Cutters by Hit Tool, Japan

Light Weight Cable Cutters by Hit Tool, Japan
  • Drop-forged high grade alloy tool steel jaws, shear cut knives give sharp, clean cut.
  • Suitable for cutting soft, non-steel cables such as lead and rubber covered aluminum and copper cable.
  • Not for cutting hard cable, ACSR cable, wire rope, steel, guy wire or self-supporting standing strand.
Tool No. -L- Capacity
Copper and Aluminum Cable		 Weight Kgrs.
SC250 600mm(24") 250mm2 (26mm dia.) 1.70

Heavy Duty Cable Cutters by Hit Tool, Japan

Heavy Duty Cable Cutters by Hit Tool, Japan
  • Drop-forged high grade alloy tool steel jaws,specially designed durable knives for tough cutting. Suitable for cutting copper and aluminum cable. Not for cutting ACSR cable ,wire rope, steel wire,guy wire or self-supporting standing strand.
Tool No. -L- Capacity
Copper and Aluminum Cable		 Weight Kgrs.
CC 20 "450mm(18"")" 150mm2 (22mm dia.) 1.5
CC 30 "760mm(30"")" 325mm2 (30mm dia.) 3.8
CC 50 "1050mm(42"")" 500mm2 (50mm dia.) 8.8

Handy Type Cable Cutters by Hit Tool, Japan

Handy Type Cable Cutters by Hit Tool, Japan
  • Shear-cut jaws designed for cutting aluminum and copper cable. Not for cutting hard cable or wire rope.
Tool No. -L- Capacity
Copper and Aluminum Cable		 Weight Kgrs.
SC 10 160mm Copper IV Cable22mm2
Copper WCT Cable50mm2		 0.17
0.17
SC 20 210mm Copper IV Cable30mm2
Copper WCT Cable80mm2		 0.29
0.29
SC 30 240mm Copper IV Cable38mm2
Copper WCT Cable90mm2		 0.48
0.48

Cable Cutters with Fiberglass Handles by Hit Tool, Japan

Cable Cutters with Fiberglass Handles by Hit Tool, Japan
  • Drop-forged high grade alloy tool steel jaws,shear cut knives give sharp, clean cut.
  • Suitable for cutting soft, non-steel cables such as lead and rubber covered aluminum and copper cable.
  • Not for cutting hard cable, ACSR cable, wire rope,steel wire, guy wire or self-supporting standing strand.
Tool No. -L- Capacity
Copper and Aluminum Cable		 Weight Kgrs.
SCF250 600mm(24")
600mm(25")		 Alum. 600MCM(350mm2 )
Copper 350MCM(250mm2 )		 1.78
1.78

Cable Cutters with Replaceable Jaws by Hit Tool, Japan

Cable Cutters with Replaceable Jaws by Hit Tool, Japan
  • Drop-forged high grade alloy tool steel jaws, shear cut knives give sharp, clean cut.
  • Suitable for cutting soft, non-steel cables such as lead and rubber covered aluminum and copper cable.
  • Not for cutting hard cable, ACSR cable, wire rope, steel, guy wire or self-supporting standing strand.
Tool No. -L- Capacity
Copper and Aluminum Cable		 Weight Kgrs.
SC250-R 600mm(24")
600mm(25")		 Alum. 600MCM(350mm2 )
Copper 350MCM(250mm2 )		 1.78
1.78
SC500-R 830mm(33")
830mm(34")		 Alum. 1000MCM(650mm2 )
Copper 500MCM(300mm2 )		 4.00
4.00

Bolt Cutter Fiberglass Handles by Hit Tool, Japan

Bolt Cutter Fiberglass Handles by Hit Tool, Japan
  • Standard black jaws with fiberglasshandles.
Tool No. -L- Capacity
49.6kg/mm2		 Capacity
HRC40		 Weight Kgrs.
BC　450-F 450mm(18") 8mm 6mm 1.50
BC　600-F 600mm(24") 10mm 8mm 2.70

ACSR Cable Cutters with Replaceable Jaws by Hit Tool, Japan

ACSR Cable Cutters with Replaceable Jaws by Hit Tool, Japan
  • Suitable for cutting soft and hard steel cable wire rope and small ACSR cable.
Tool No. -L- Capacity
Copper and Aluminum Cable		 Weight Kgrs.
SC250R-ACSR 600mm (24")
600mm (24")		 Alum. 600MCM(350mm2)
Copper 250MCM(250mm2 )		 1.78
1.78

Ratchet Cable Cutters by Hit Tool, Japan

Ratchet Cable Cutters by Hit Tool, Japan
  • Designed for cutting copper and aluminum cable and leaves no burrs or sharp edges.
  • Ratchet type jaws.
  • Not for cutting ACSR cable, steel cable or guy wire.
Tool No. -L- Capacity
Copper and Aluminum Cable		 Weight Kgrs.
CCR 500 260mm 500mm2 -42mm( outside dia.) 1.20
CCR 350 230mm 350mm2 -30mm( outside dia.) 0.54

Cable Cutters by MCC, Japan

Cable Cutters by MCC, Japan
  • Designed specially for efficient cutting of soft aluminum or soft copper strands. Blades pass each other for clean, shear cutting of all cable strands. Hook blades force cable strands into jaws while cutting with practically no crushing or distortion.
Model No. Size
mm(inch)		 Max Capacity(Dia.) Weight
Kg		 Spare Blade
No.
CC-0301 465 (18") 20 ( 13/16") 1.65 CCE0301
CC-0302 760 (30") 30 ( 13/16") 4.10 CCE0302
CC-0303 1065 (42") 50 (　2"　) 9.00 CCE0303

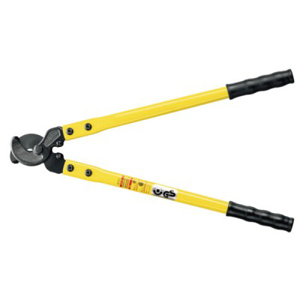

E2- Cable Cutter 31mmØ by Baudat, Germany

E2- Cable Cutter 31mmØ
  • For copper and aluminium cables to 31mmØ
  • Cutting capacity 250mm² Cu
  • All parts replaceable
  • Made in Germany
  • Length 525mm
  • Weight 1.4 kg
  • √ RoHS compliant

Cable Cutter 50mmØ by Baudat, Germany

Cable Cutter 50mmØ
  • For copper and aluminium cables to 50mmØ
  • Cutting capacity 500mm² Cu
  • All parts replaceable
  • Made in Germany
  • Length 770mm
  • Weight 2.9 kg
  • √ RoHS compliant

K32- Ratchet Cable Cutter 32mmØ by Baudat, Germany

K32- Ratchet Cable Cutter 32mmØ

Ratchet cable cutter with single handed operation Open jaws for faster operation and greater access to restricted spaces

Cutting Capacity:

  • Copper and aluminium cables to 32mmØ
  • Copper cable to 250mm²
  • Aluminium cables to 320mm²
  • Blades releasable at any point during cutting
  • All parts replaceable
  • √ RoHS compliant

SC40 - Ratchet Cable Cutter 40mmØ by Baudat, Germany

SC40 - Ratchet Cable Cutter 40mmØ

Ratchet cable cutter with single handed operation

Cutting Capacity:

  • Copper and aluminium cables to 40mmØ
  • Copper cable to 300mm²
  • Aluminium cables to 350mm²
  • Locking button for safe storage
  • Ergonomically designed handles for ease of use
  • Blades releasable at any point during cutting
  • All parts replaceable
  • Length 240mm
  • Weight 0.7kg
  • √ RoHS compliant

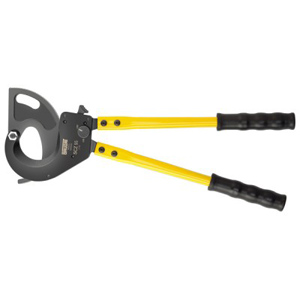

SC55 - Ratchet Cable Cutter 55mm by Baudat, Germany

SC55 - Ratchet Cable Cutter 55mm

Ratchet cable cutter with single handed operation

  • For copper and aluminium cable to 55mmØ
  • Blades releasable at any point during cutting
  • All parts replaceable
  • Length 310mm
  • Weight 1.5kg
  • √ RoHS compliant

SCZ55 - RATCHET CABLE CUTTER 55mmØ by Baudat, Germany

SCZ55 - RATCHET CABLE CUTTER 55mmØ

Ratchet cable cutter with two handed operation

Cutting capacity :

  • Copper and aluminium cable to 55mmØ
  • Copper cables to 450mm²
  • Aluminium cables to 500mm²
  • Blades releasable at any point during cutting
  • All parts replaceable
  • Length 430mm
  • Weight 1.6kg
  • √ RoHS compliant

SCZ70 - Ratchet Cable Cutter 70mmØ by Baudat, Germany

SCZ70 - Ratchet Cable Cutter 70mmØ

Ratchet cable cutter with two handed operation

Cutting capacity :

  • For copper and aluminium cable to 70mmØ
  • Blades releasable at any point during cutting
  • All parts replaceable
  • Length 533mm
  • Weight 2.9kg
  • √ RoHS compliant

SCZ95 - Ratchet Cable Cutter 95mmØ by Baudat, Germany

SCZ95 - Ratchet Cable Cutter 95mmØ

Ratchet cable cutter with two handed operation

  • For copper and aluminium cable to 95mmØ
  • Blades releasable at any point during cutting
  • All parts replaceable
  • Length 700mm
  • Weight 4.9kg
  • √ RoHS compliant
