Soldering Consumables

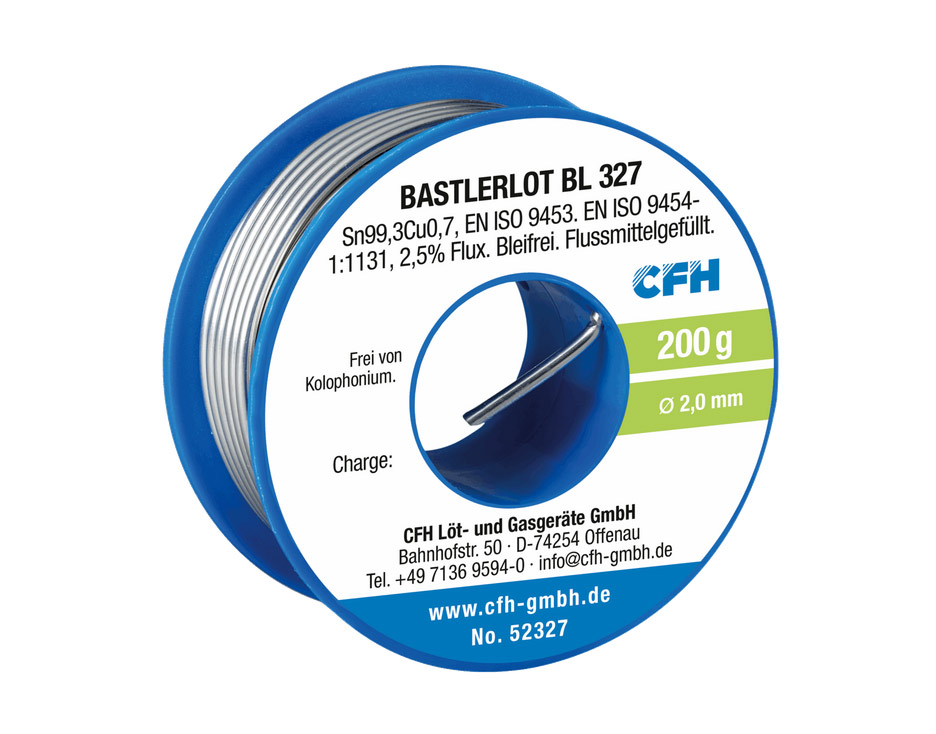

The Balzerlot BL 327 is a lead-free, halogen-free soft solder for precise hand soldering. Ideal for copper, copper alloys and iron materials – perfect for fine soldering, plumbing and telecommunications. With flux core (2.5% flux) for clean solder joints. Recommended soldering temperature: 350–450 °C. Coil with 200 g solder, Ø 2.0 mm.

The CFH Bastlerlot BL 327 (Art.-No.: 52327) is the ideal solution for precise and clean soldering work. It is ideal for fine soldering by hand, plumbing, telecommunications construction and general repairs on copper, copper alloys and iron materials. The solder is lead-free, halogen-free and contains a flux based on amines, diamines and urea for reliable results. With a diameter of 2.0 mm and a weight of 200 g, the coil offers sufficient material for numerous applications. The recommended soldering temperature is 350–400 °C for flask soldering and up to 450 °C for flame soldering. Flux residues are water-soluble and can be easily removed if necessary.

• Lead-free and halogen-free for environmentally friendly soldering
• Ideal for copper, copper alloys and iron materials
• Perfect for fine soldering, plumbing and telecommunications construction
• Flux filled (2.5% flux) for clean solder joints
• Water-soluble flux residues – easy cleaning
• Compatible with CFH soldering devices and accessories

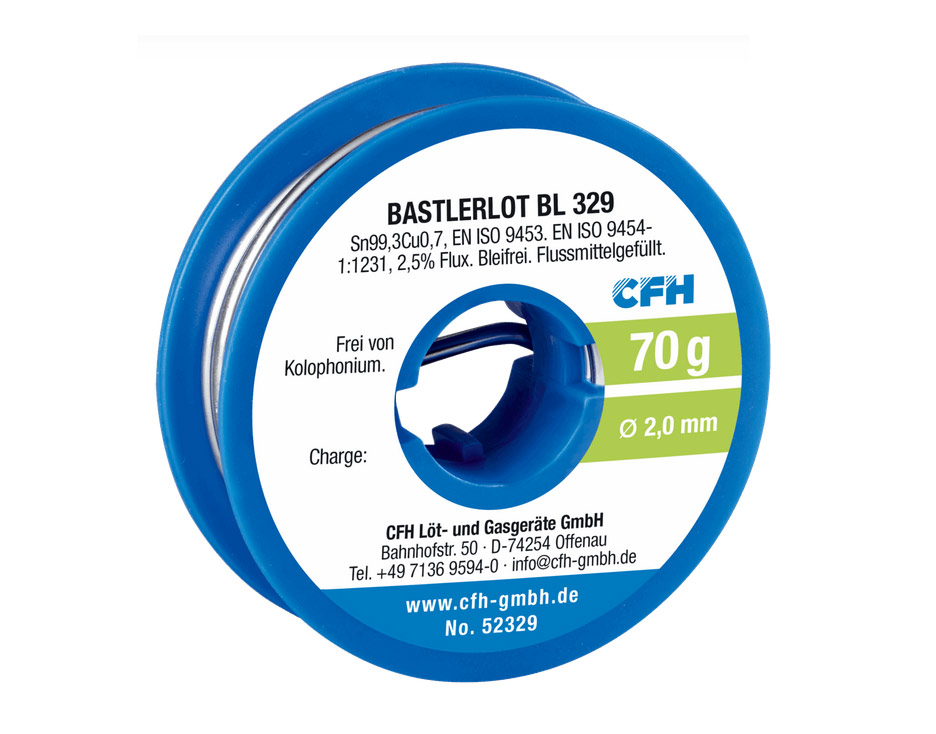

The BL 329 hobby lot is a lead-free, halogen-free soft solder for precise hand soldering. Ideal for copper, copper alloys and iron materials – perfect for fine soldering, plumbing and telecommunications. With flux core (2.5% flux) for clean solder joints. Recommended soldering temperature: 350–450 °C. Coil with 70 g solder, Ø 2.0 mm.

The CFH Bastlerlot BL 329 (Art.-No.:52329) is the compact solution for precise and clean soldering work. It is ideal for fine soldering by hand, plumbing, telecommunications construction and general repairs on copper, copper alloys and iron materials. The solder is lead-free, halogen-free and contains a flux based on amines, diamines and urea for reliable results. With a diameter of 2.0 mm and a weight of 70 g, the coil is ideal for smaller projects and precise applications. The recommended soldering temperature is 350–400 °C for flask soldering and up to 450 °C for flame soldering. Flux residues are water-soluble and can be easily removed if necessary.

• Lead-free and halogen-free for environmentally friendly soldering
• Ideal for copper, copper alloys and iron materials
• Perfect for fine soldering, plumbing and telecommunications construction
• Flux filled (2.5% flux) for clean solder joints
• Water-soluble flux residues – easy cleaning
• Compatible with CFH soldering devices and accessories

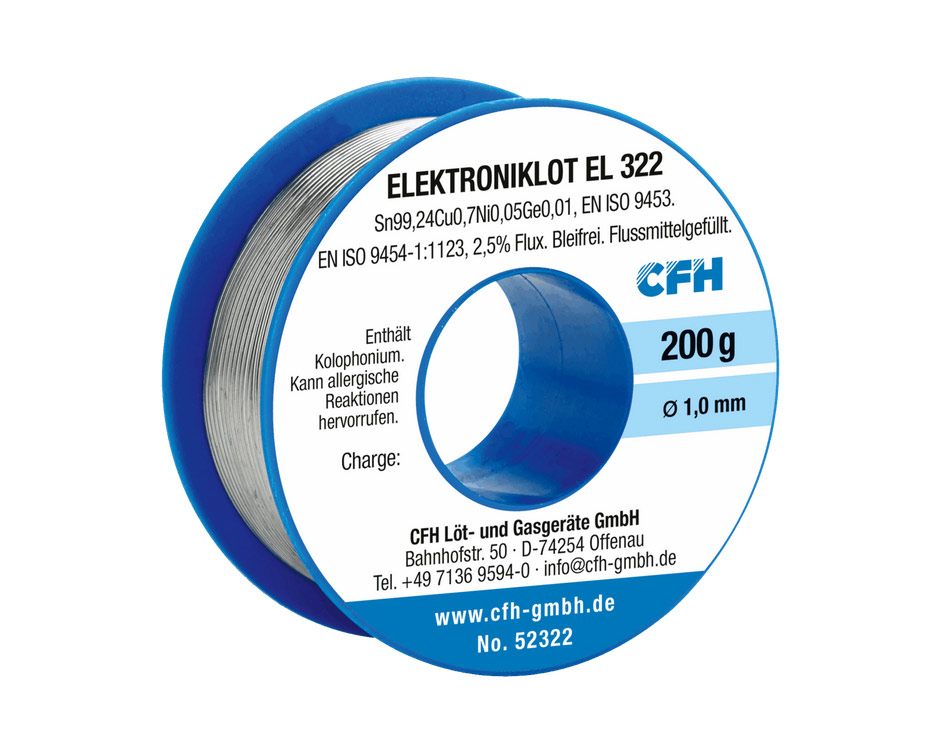

The electronic solder EL 322 is a lead-free, flow-filled soft solder wire for precise hand soldering in electrical engineering and electronics. With halogen-containing activated flux for optimal wetting and excellent propagation values. Ideal for soldering up to 450 °C. Coil with 200 g lot, Ø 1.0 mm – perfect for professional applications.

The CFH electronic solder EL 322 (Art.-No.: 52322) is the perfect choice for demanding soldering work in electrical engineering, electromechanics and electronics. The flow-filled, halogen-containing activated soft solder wire convinces with its high temperature resistance, optimum wetting and above-average propagation values. With a composition of Sn99,24Cu0,7Ni0,05Ge0.01 it is lead-free and meets the highest quality standards. Suitable for soldering iron temperatures up to 450 °C (optimally 370–380 °C). The solid flux residues are corrosion-free and can remain on the solder joint. For HV and RF applications, cleaning with PCB cleaners is recommended.

• Lead-free and halogen-containing activated for professional results
• Ideal for electrical engineering, electronics and fine soldering
• High temperature resistance and optimal wetting
• Corrosion-free flux residues – no re-cleaning required
• Suitable for soldering iron temperatures up to 450 °C
• Compatible with CFH soldering devices and accessories

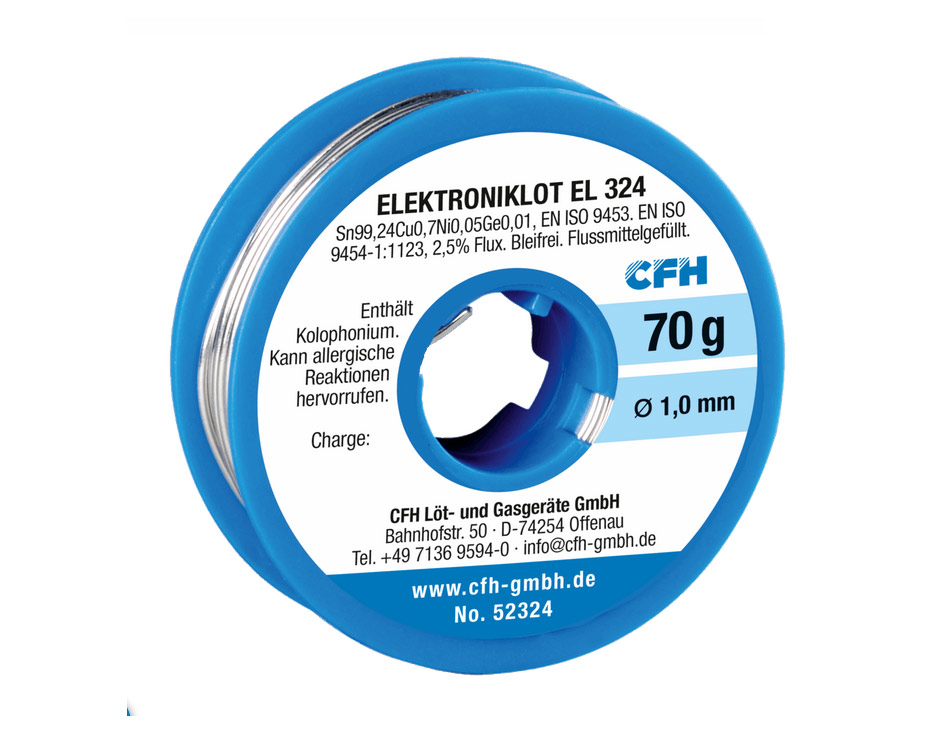

The electronic solder EL 324 is a lead-free, flow-filled soft solder wire for precise hand soldering in electrical engineering and electronics. With halogen-containing activated flux for optimal wetting and excellent propagation values. Ideal for soldering up to 450 °C. Coil with 70 g solder, Ø 1.0 mm – perfect for fine applications.

The CFH electronic slot EL 324 (Art. No.: 52324) is the ideal solution for precise soldering work in electrical engineering, electromechanics and electronics. The flow-filled, halogen-containing activated soft solder wire convinces with its high temperature resistance, optimum wetting and above-average propagation values. With a composition of Sn99,24Cu0,7Ni0,05Ge0.01 it is lead-free and meets the highest quality standards. Suitable for soldering iron temperatures up to 450 °C (optimally 370–380 °C). The solid flux residues are corrosion-free and can remain on the solder joint. For HV and RF applications, cleaning with PCB cleaners is recommended.

• Lead-free and halogen-containing activated for professional results
• Ideal for electrical engineering, electronics and fine soldering
• High temperature resistance and optimal wetting
• Corrosion-free flux residues – no re-cleaning required
• Suitable for soldering iron temperatures up to 450 °C
• Compatible with CFH soldering devices and accessories

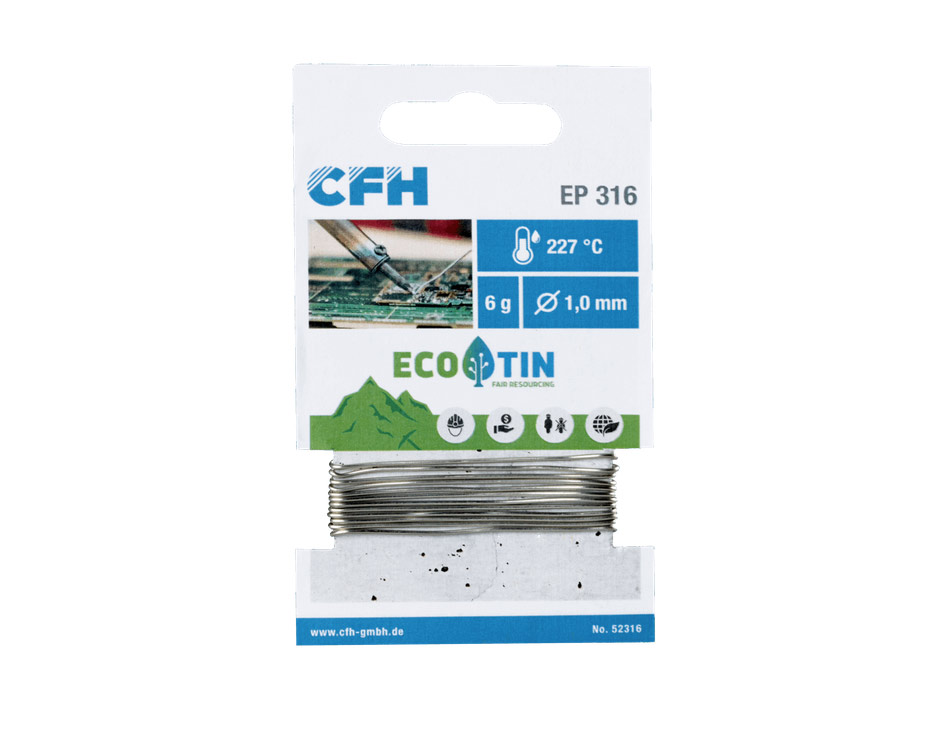

The electronics solder PREMIUM ECO TIN EL 316 is a high-quality soldering wire for precise hand soldering in electronics and electrical engineering. With colophonium-free, halogen-free flux formulation for clean solder joints and optimal wetting. Lead-free, fair resourcing and ideal for assembly production. Coil with 6 g solder, Ø 1.0 mm – perfect for fine applications.

The CFH Elektroniklot PREMIUM ECO TIN EL 316 (Art. No.: 52316) stands for the highest quality and sustainability. Designed for precise hand soldering in electronics, electrical engineering and assembly production, it offers an innovative flux formulation based on synthetic resins – colophonium-free, halogen-free and lead-free. The flux is splash-free, temperature-resistant and ensures optimum wetting and excellent propagation values. Suitable for soldering iron temperatures up to 450 °C (optimally 370–380 °C). The solid flux residues are corrosion-free and can remain on the solder joint. For HV and RF applications, cleaning with alkaline-based printed circuit board cleaners is recommended.

Our electronic solder PREMIUM ECO TIN EL 316 is produced from proven sustainable and fairly obtained raw materials. It stands for the responsible treatment of people and the environment: safe working conditions, fair remuneration, protection of children from exploitation and a production that protects natural resources.

• High-quality solder wire for electronics and assembly production
• Fair resourcing – sustainable and environmentally friendly
• Rosin-free, halogen-free and lead-free
• Spray-free flux for clean solder joints
• High temperature resistance and optimal wetting
• Suitable for soldering iron temperatures up to 450 °C
• Compatible with CFH soldering devices and accessories

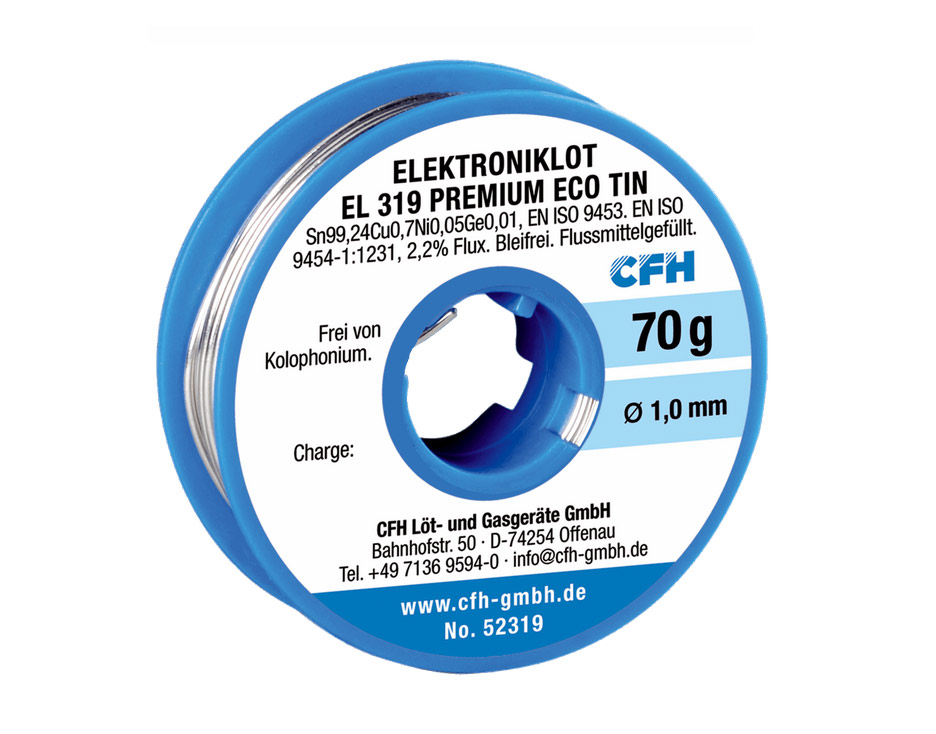

The electronics solder PREMIUM ECO TIN EL 319 is a high-quality soldering wire for precise hand soldering in electronics and electrical engineering. With colophonium-free, halogen-free flux formulation for clean solder joints and optimal wetting. Lead-free, fair resourcing and ideal for assembly production. Coil with 70 g solder, Ø 1.0 mm – perfect for fine applications.

The CFH Elektroniklot PREMIUM ECO TIN EL 319 (Art.-No.: 52319) stands for quality and sustainability. Designed for precise hand soldering in electronics, electrical engineering and assembly production, it offers an innovative flux formulation based on synthetic resins – colophonium-free, halogen-free and lead-free. The flux is splash-free, temperature-resistant and ensures optimum wetting and excellent propagation values. Suitable for soldering iron temperatures up to 450 °C (optimally 370–380 °C). The solid flux residues are corrosion-free and can remain on the solder joint. For HV and RF applications, cleaning with PCB cleaners is recommended.

Our electronic solder PREMIUM ECO TIN EL 319 is produced from proven sustainable and fairly obtained raw materials. It stands for the responsible treatment of people and the environment: safe working conditions, fair remuneration, protection of children from exploitation and a production that protects natural resources.

• High-quality solder wire for electronics and assembly production
• Fair resourcing – sustainable and environmentally friendly
• Rosin-free, halogen-free and lead-free
• Spray-free flux for clean solder joints
• High temperature resistance and optimal wetting
• Suitable for soldering iron temperatures up to 450 °C
• Compatible with CFH soldering devices and accessories

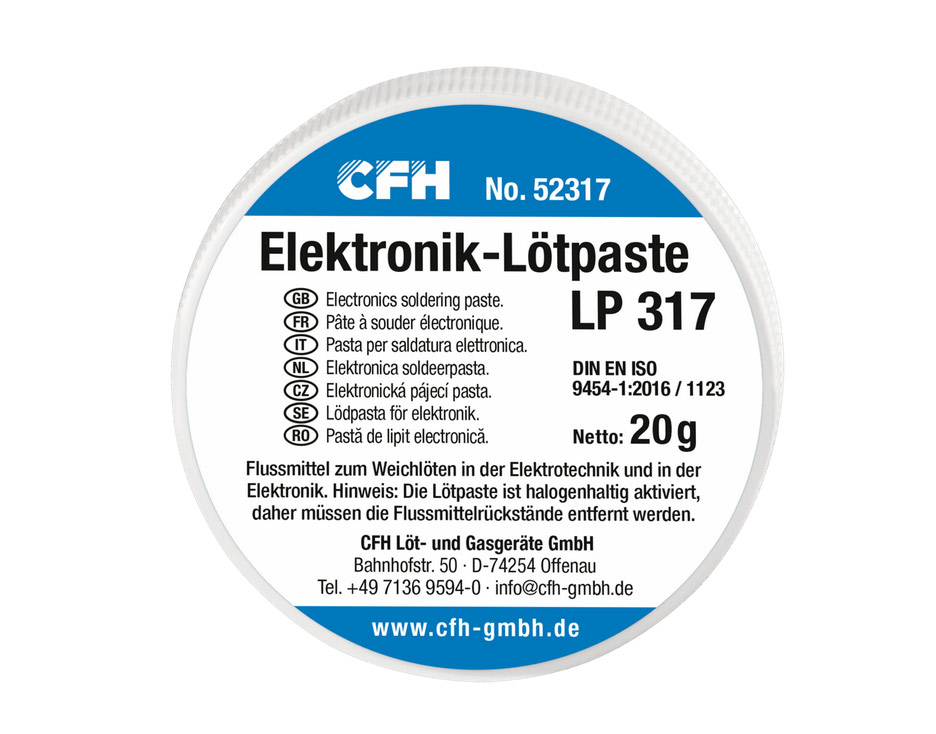

The electronic solder paste LP 317 is a pasty flux for soft soldering in electrical engineering, electrical appliance construction and conditional electronics. Ideal for soldering and tinning work under high temperatures and long soldering times. Halogen-containing activated for reliable results. Packed in a practical can with 20 g content.

The CFH electronic solder paste LP 317 (Art. no.: 52317) is the perfect solution for demanding soldering work in electrical engineering and electrical equipment construction. It is particularly suitable for soldering and tinning work, which must be carried out under high temperatures and long soldering times. Thanks to the halogen-containing activated composition, the paste ensures optimal wetting and reliable connection of the materials. The application is simple and precise, ideal for professional and hobby users. With 20 g of content in a handy can, the LP 317 is perfect for use in workshop and production.

• Pasty flux for soft soldering
• Ideal for electrical engineering and electrical equipment construction
• Perfect for soldering and tinning work at high temperaturesee
• Halogen-containing activated for optimal wetting
• Practical can with 20 g content
• Compatible with CFH soldering devices and accessories

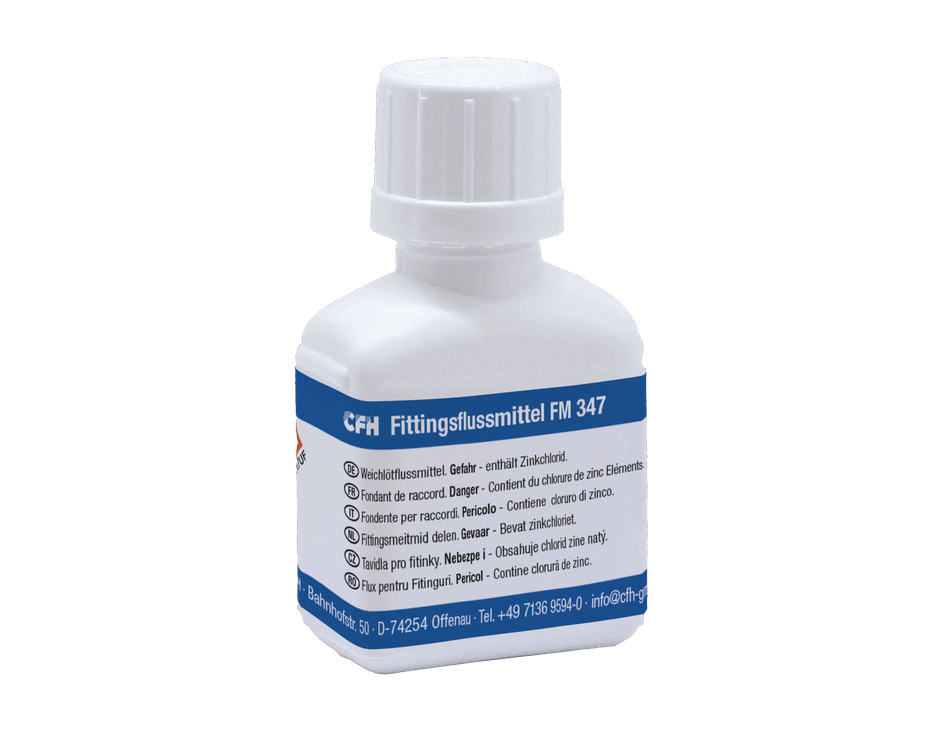

The Fittingsflux FM 347 is a high-quality soft soldering flux based on zinc and ammonium chloride. Ideal for soldering copper pipes in cold and hot water installations. It improves the flowability and ensures optimal wetting. Residues are water-soluble and must be removed after soldering. Practical bottle with integrated brush, content 20 g.

The CFH fitting flux FM 347 (Item no.: 52347) is the perfect complement for professional soldering work on copper pipes in cold and hot water installations. The special formulation based on zinc and ammonium chloride ensures excellent wetting properties and improved flowability of the solder. With a working temperature of approx. The flux is ideal for soft soldering with flame or resistance heating. The application is simple: brush clean surface with the integrated brush, heat and feed fitting slot. After soldering, the corrosive residues must be removed by rinsing with water. Residues are 100% water-soluble.

• Soft soldering flux for soldering copper pipes in cold and hot water installation
• Based on zinc chloride and ammonium chloride
• Particularly suitable for soldering with fitting solders from CFH
• Flux 3114, DIN EN ISO 9454-1

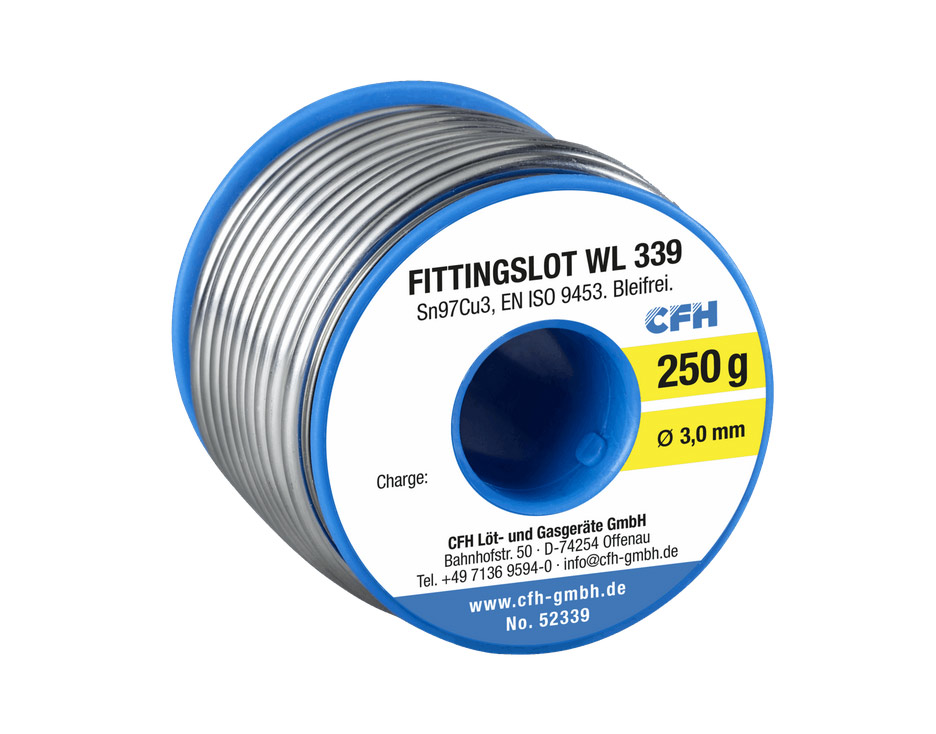

The Fittingslot WL 339 is a lead-free soft solder for copper pipe installations in cold and hot water systems according to DVGW worksheet GW 2. Hot-resistant up to 110 °C and ideal for general soldering work on copper and copper alloys. Coil with 250 g solder, Ø 3.0 mm. For optimal results, use only in conjunction with CFH fitting flux or fitting solder paste.

The CFH fitting slot WL 339 (Item no.: 52339) is the perfect solution for professional soldering work on copper pipes in cold and hot water installations. The lead-free soft solder meets the requirements of the DVGW worksheet GW 2 and is hot-resistant up to 110 °C. With a composition of Sn97Cu3, it is also suitable for general soldering work on copper and copper alloys. The application is simple and safe: for installations in combination with CFH fitting flux FM 347 or fitting solder paste FP 348. With a diameter of 3.0 mm and a weight of 250 g, the coil offers sufficient material for numerous connections.

• Soft soldering flux for soldering copper pipes in cold and hot water installation
• Hot proof to 110 °C
• Only to be used in conjunction with fittings flux (CFH Art.-Nr.: 52347) or fitting solder paste (CFH Art.-No.: 52348)
• Also suitable for general soldering work on copper and copper alloys
• Sn97Cu3, EN ISO 9453
• Melting/working temperature: approx. 270 °C

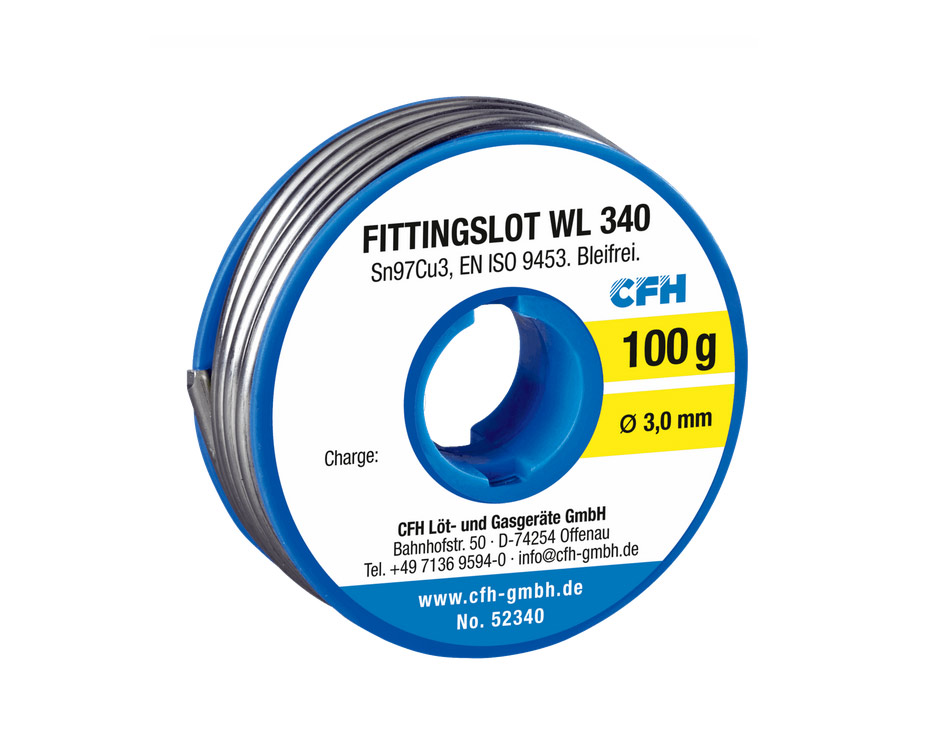

The Fittingslot WL 340 is a lead-free soft solder for copper pipe installations in cold and hot water systems according to DVGW worksheet GW 2. Hot-resistant up to 110 °C and also suitable for general soldering work on copper and copper alloys. Coil with 100 g solder, Ø 3.0 mm. For optimal results, use only in conjunction with CFH fitting flux or fitting solder paste.

The CFH fitting slot WL 340 (Order No: 52340) is the ideal solution for professional soldering work on copper pipes in cold and hot water installations. The lead-free soft solder meets the requirements of the DVGW worksheet GW 2 and is hot-resistant up to 110 °C. With a composition of Sn97Cu3, it is also suitable for general soldering work on copper and copper alloys. The application is simple and safe: for installations in combination with CFH fitting flux FM 347 or fitting solder paste FP 348. With a diameter of 3.0 mm and a weight of 100 g, the coil offers sufficient material for precise and reliable connections.

• Soft soldering flux for soldering copper pipes in cold and hot water installation
• Hot proof to 110 °C
• Only to be used in conjunction with fittings flux (CFH Art.-Nr.: 52347) or fitting solder paste (CFH Art.-No.: 52348)
• Also suitable for general soldering work on copper and copper alloys
• Sn97Cu3, EN ISO 9453
• Melting/working temperature: approx. 270 °C

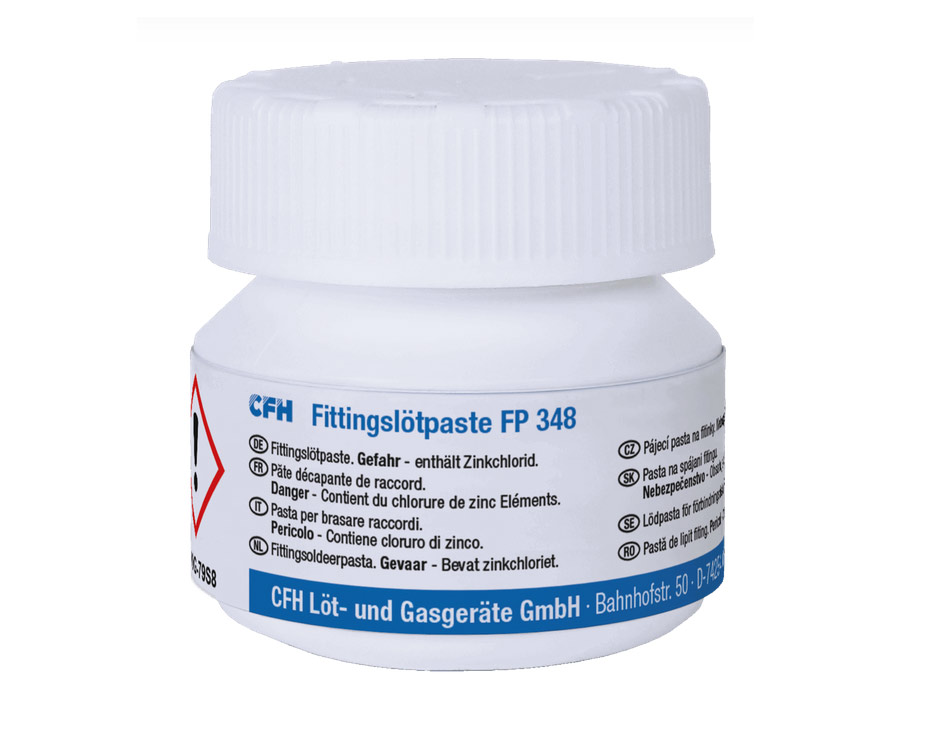

The FP 348 fitting solder paste is ideal for pre-tinning and improved flowability when soft soldering copper pipes. Thanks to the optimal consistency, it can be applied precisely and sparingly, remains in place even with overhead soldering and ensures clean throat seams. Lead-free, in a practical screw cap container, capacity 100 g.

The CFH fitting solder paste FP 348 (Art.-No.: 52348) is the perfect addition for professional soldering work on copper tubes. It serves to pre-tinning and improves the flowability of the solder, creating a secure and stable connection. Their optimal consistency allows precise and economical application, without leakage or stirring. During heating, the melting of the solder component indicates the attainment of the working temperature. The excellent gap filling ensures high shear strength, while the overheating limit guarantees safe processing. Even with overhead soldering, the paste remains reliably in place. Lead-free and standard-compliant.

• Fitting soldering paste for pre-tinning and to improve the flowability in the soft soldering of copper pipes
• Particularly suitable for soldering with fitting solders from CFH
• Sn97Cu3, DIN EN ISO 9453
• Flux 3214, DIN EN ISO 9454-1

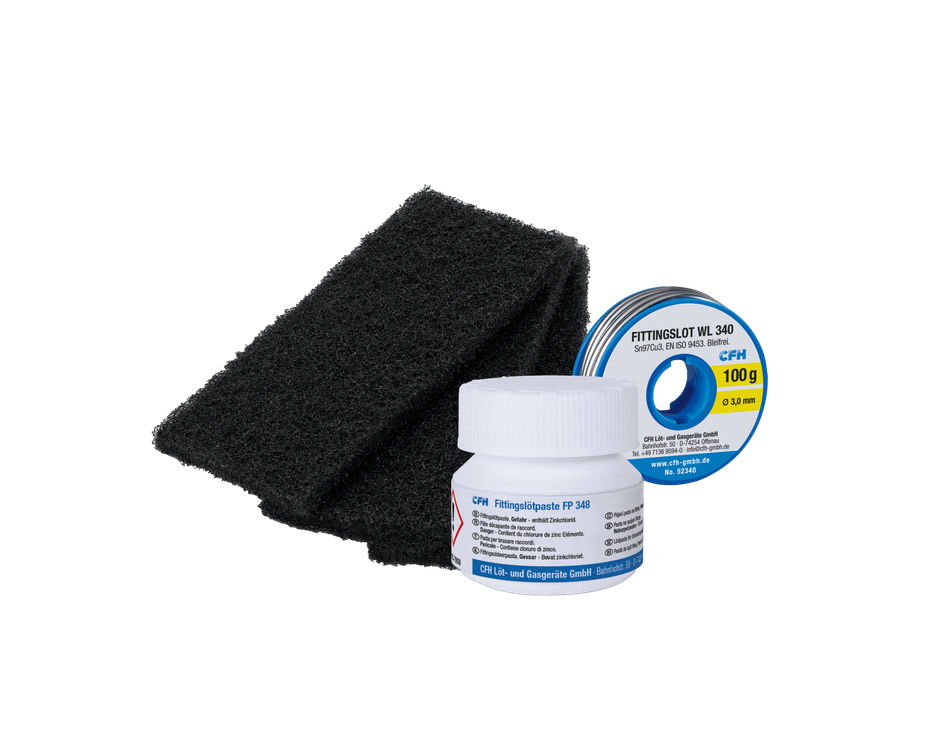

The FS 298 fitting soldering set is the complete package for the professional soft soldering of copper pipes in drinking water systems. Included are fitting slot, fitting solder paste and cleaning fleece – all for standard-compliant, safe and clean solder joints. Ideal for installers and home improvement who appreciate quality and safety.

The CFH fitting soldering set FS 298 (Item no.: 52298) offers everything you need for the professional soft soldering of copper pipes. It is specially designed for cold and hot water installations in drinking water systems and contains fittings solder, fitting solder paste and cleaning fleece. This allows you to optimally prepare the solder joint, apply the flux precisely and safely feed the solder. The set guarantees standard-compliant, clean and durable connections – perfect for installers and DIYers. Lead-free and tested according to relevant standards, it ensures the highest safety and quality.

• Complete set for copper pipe soft soldering
• Ideal for cold and hot water installations in drinking water systems
• Contains all necessary components: solder, paste, cleaning fleece
• Lead-free and standard-compliant for safe connections
• Easy application for installers and DIYers
• Compatible with CFH soldering devices and accessories
• Perfect for professional and private projects

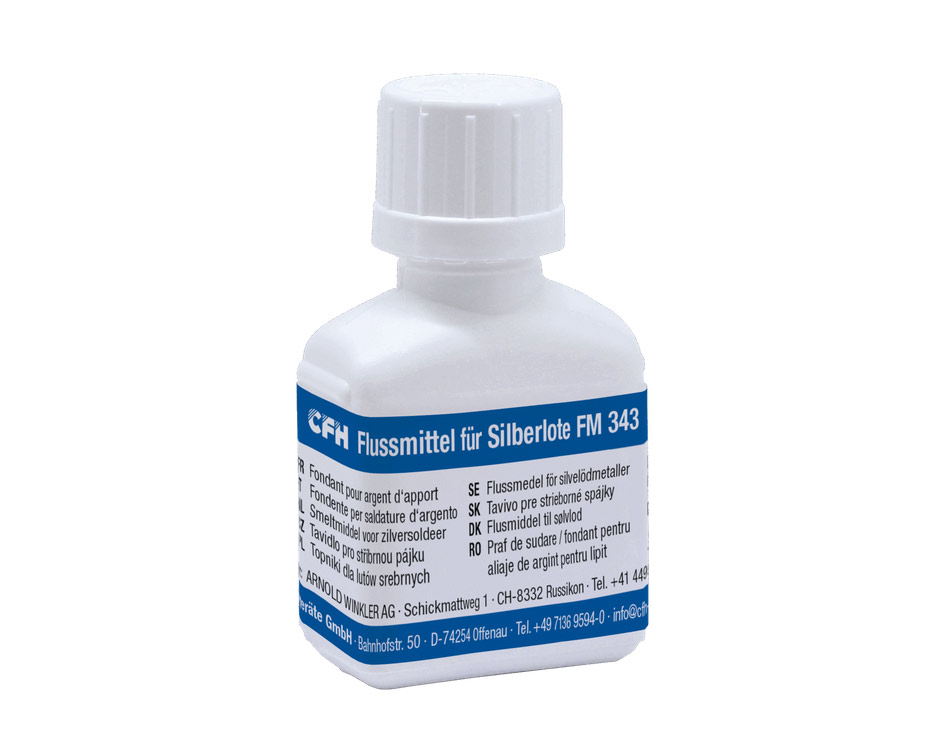

The flux FM 343 is a brazing flux for copper, copper alloys, brass and red cast iron in drinking water installations. It protects against oxidation and ensures safe, clean solder joints. Application by painting or immersion. Residues are corrosive and must be removed. Practical bottle with brush, content 25 g.

The CFH flux FM 343 (Art. No.: 52343) is the ideal solution for the brazing of copper, copper alloys, brass and red casting in drinking water installations. It reliably protects the solder joint from oxidation and ensures optimum wetting of the workpiece. The application is simple: stir well before use, then apply the flux by brushing or dipping onto the cleaned surface. The environment of the soldering point should also be covered. When heated to soldering temperature (>500 °C), the solder is safely introduced. After soldering, the corrosive residues must be removed.

• Brass flux for brazing copper, copper alloys, brass and red cast iron in drinking water installation
• Particularly suitable for soldering with copper and silver solders from CFH
• Flux type FH10 B, DIN EN ISO 18496

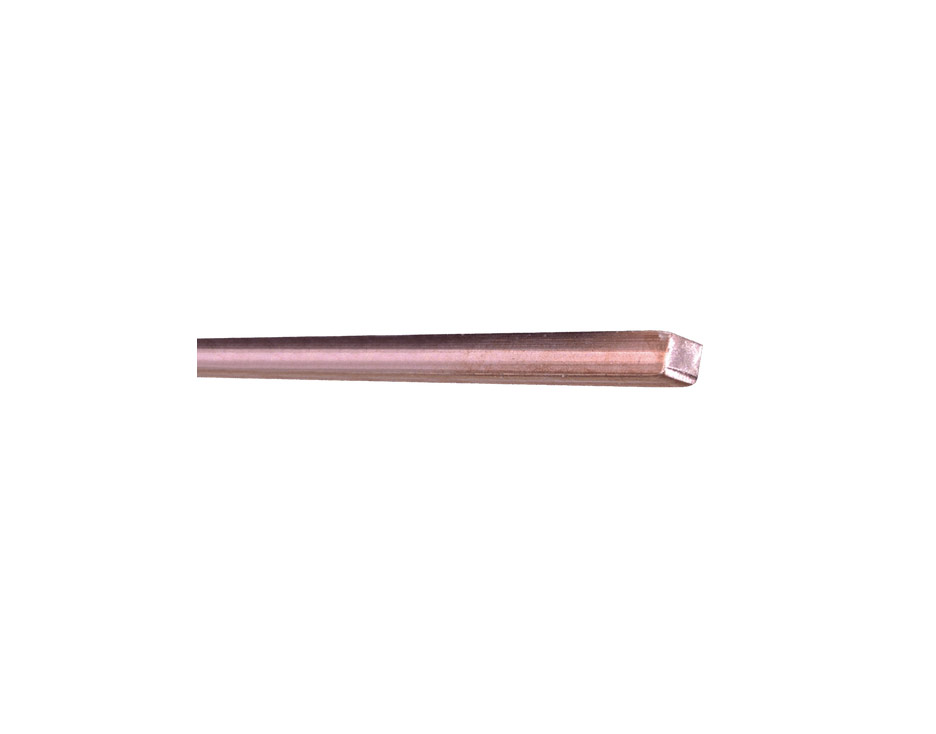

The KH 310 copper phosphorus hard lot is ideal for brazing copper pipelines in oil, gas, liquefied petroleum gas, heating and drinking water installations according to DVGW GW 2. With excellent flow properties and a working temperature of approx. 730 °C. Contains 5 bars (Ø 2.0 mm, length 333 mm). Can be combined with CFH flux or solder water.

The CFH copper-phosphorus hard lot KH 310 (Art.-No.: 52310) is the perfect choice for the brazing of copper pipelines in oil, gas and liquefied petroleum gas installations as well as in heating and drinking water systems. It meets the requirements of the DVGW worksheet GW 2 and is suitable for pipe dimensions over 28 x 1.5 mm. Thanks to its phosphorus-containing composition, the solder offers excellent flow properties and ensures safe, long-lasting connections. The application is simple: thoroughly clean the solder joint, bring the workpiece to working temperature and start the solder rod in the flame curtain. With a working temperature of approx. The lot is 730 °C ideal for professional installations.

• For brazing copper pipelines in oil, gas and liquefied petroleum gas installation as well as in heating and drinking water installation
• Excellent flow properties and high tensile strength
• CuP 179, DIN EN ISO 17672
• Melting/working temperature: approx. 730 °C
• Contents: 5 rods (2.0 mm diameter, 333 mm length)

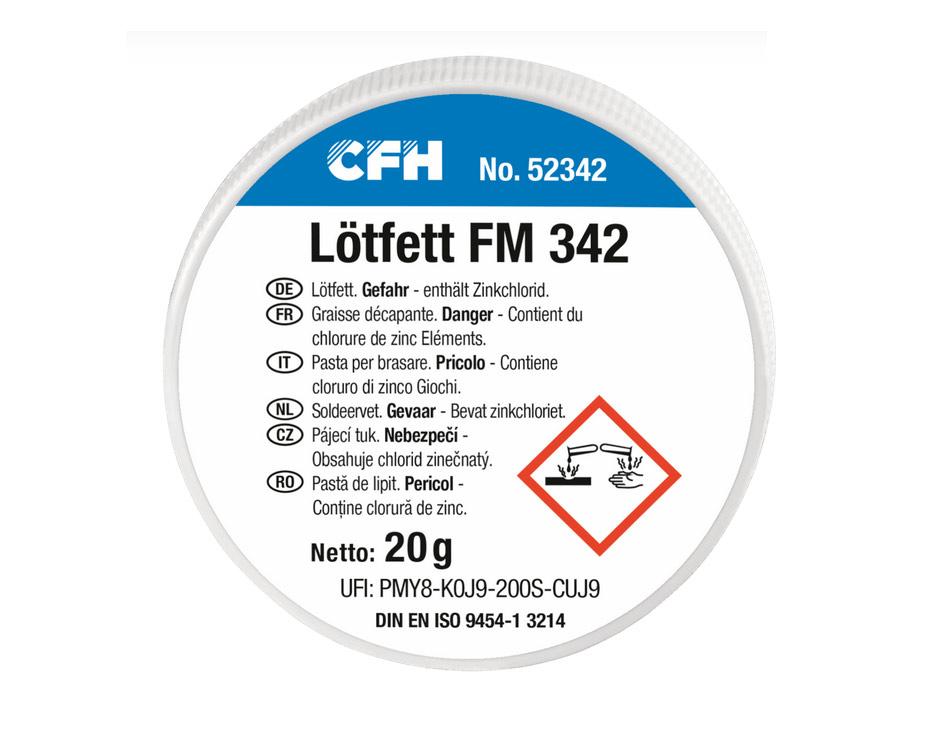

The solder grease FM 342 is a high-quality flux for the soft soldering of copper and copper alloys. Ideal for copper pipe installations, radiator construction, plumbing and fittings manufacturing. Removes oxides and impurities for perfect solder joints. Residues are corrosive and must be carefully washed off. Practical can with 20 g content.

The CFH soldering grease FM 342 (Order No.: 52342) is the ideal solution for professional soft soldering work on copper and copper alloys. It is perfect for applications in copper pipe installation, radiator construction, plumbing, immersion soldering and valve manufacturing. The pasty flux based on zinc chloride and ammonium chloride cleans and activates the workpiece surface, removes oxides and impurities and thus ensures optimal flow of the solder. The application is simple: apply thinly before soldering, after soldering, thoroughly remove the corrosive residues with water or a suitable detergent.

• Flux for soft soldering of copper and copper alloys
• Applicable in copper pipe installation, radiator construction, plumbing, immersion soldering, fittings production and other soldering work
• DIN EN ISO 9454-1:3214

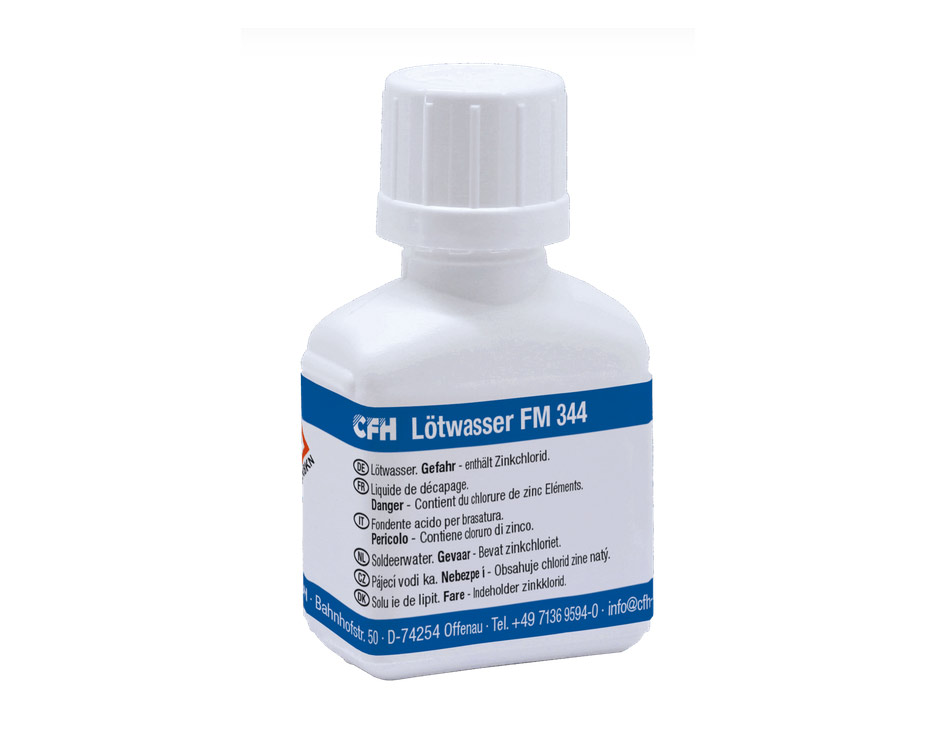

The soldering water FM 344 is a high-quality flux for general soft soldering. Suitable for iron, steel, brass, copper, lead and tinplate as well as for Tiffany soldering. Removes oxide layers for clean solder joints and facilitates the flow of the soldering. Residues are corrosive and must be removed with warm water. Practical bottle with brush, content 25 ml.

The CFH soldering water FM 344 (Item no.: 52344) is the ideal solution for precise and clean soft soldering work. It is suitable for iron, steel, brass, copper, lead and tinplate and is also ideal for Tiffany soldering. The flux reliably removes oxide layers and ensures optimal wetting of the solder joint, which allows the soldering tin to flow easily and evenly. The application is simple: Apply to the cleaned surface before soldering with the integrated brush. After soldering, the corrosive residues must be carefully removed with warm water.

• Flux for general soldering (e.g. B. radiator construction, plumbing)
• For soft soldering of iron, steel, brass, copper, lead and tinplate
• Also suitable for Tiffany soldering
• Flux type 3114

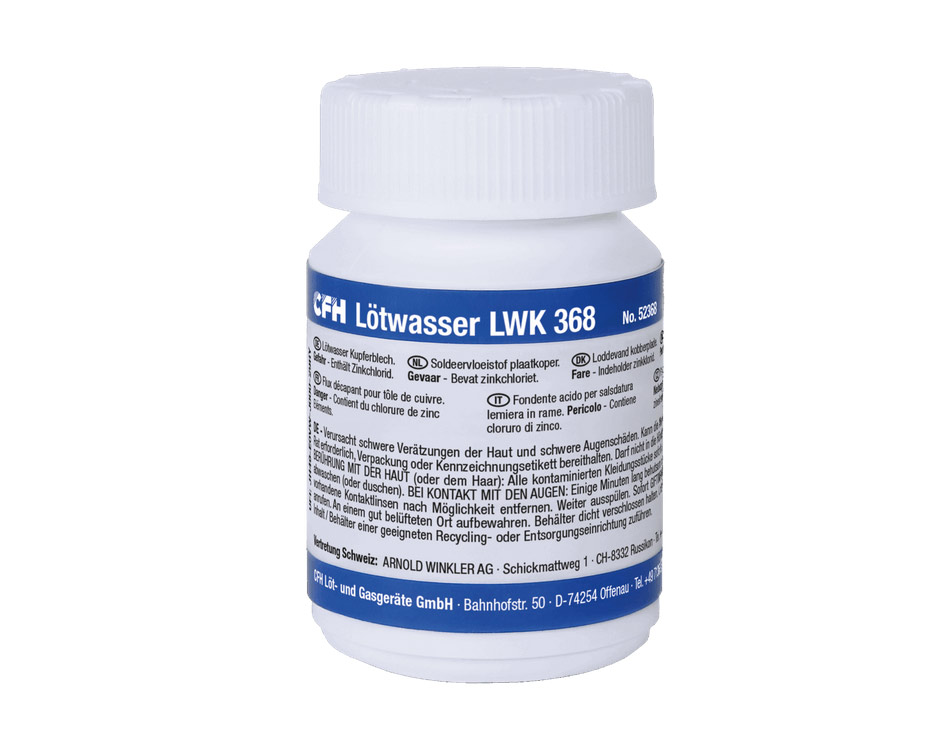

The LWK 368 soldering water is a high-quality flux for the soft soldering of copper and copper alloys. Ideal for roofing work such as soldering copper roofs, gutters and downpipes. In conjunction with CFH rod soldering tin SK 366, no pre-kneeding is required. Practical screw cap container with 100 g capacity for easy application.

The CFH soldering water copper sheet LWK 368 (Art.-No.: 52368) is the perfect solution for professional soldering work in the roofing trade. It is ideal for soldering copper and copper alloys, especially for copper roofs, gutters and downpipes. The flux ensures optimal wetting and prevents oxidation, creating a safe and long-lasting connection. The application is simple: brush cleaned parts with soldering water, leave it on briefly, apply soldering tin in a punctiform manner and distribute them evenly with the copper soldering iron. The capillary action ensures a complete filling of the solder gap. After soldering, thoroughly clean the solder joint with water.

• Flux for soldering copper and copper alloys
• For general soldering work, especially in the roofing trade
• Ideally suited for soldering copper roofs, roof gutters and downpipes
• In conjunction with the rod soldering tin SK 366 (CFH-No. 52366), pre-riveting is not required
• Flux type 3114, DIN EN ISO 9454-1

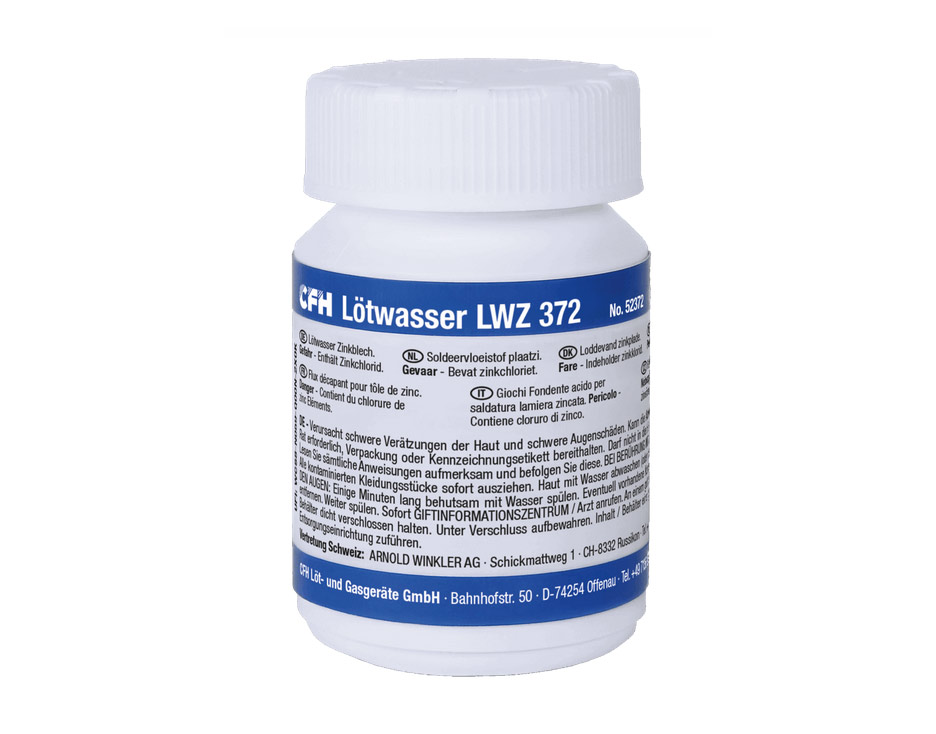

The soldering water LWZ 372 is a high-quality flux for the soft soldering of zinc, titanium zinc and galvanized steel sheet. Ideal for roofing work such as soldering zinc sheets and gutters. Ensures optimal wetting and safe soldering connections. Practical screw cap container with 100 g capacity. Remove residues thoroughly with water after soldering.

The CFH soldering water zinc sheet LWZ 372 (Art.-No.: 52372) is the perfect solution for professional soldering work in the roofing trade. It is ideal for soldering zinc, titanium zinc and galvanized steel sheet and ensures reliable wetting of the solder joint. The application is simple: brush cleaned parts with soldering water, leave it on briefly, apply solder in a punctiform manner and then distribute them evenly with the copper soldering iron. The capillary action ensures a complete filling of the solder gap. After soldering, the residues must be thoroughly removed with water.

• Flux for soldering zinc, titanium zinc and galvanized steel sheet
• For general soldering work, especially in the roofing trade
• Particularly suitable for soldering with rod solder tin zinc sheet from CFH
• Flux type 3114, DIN EN ISO 9454-1

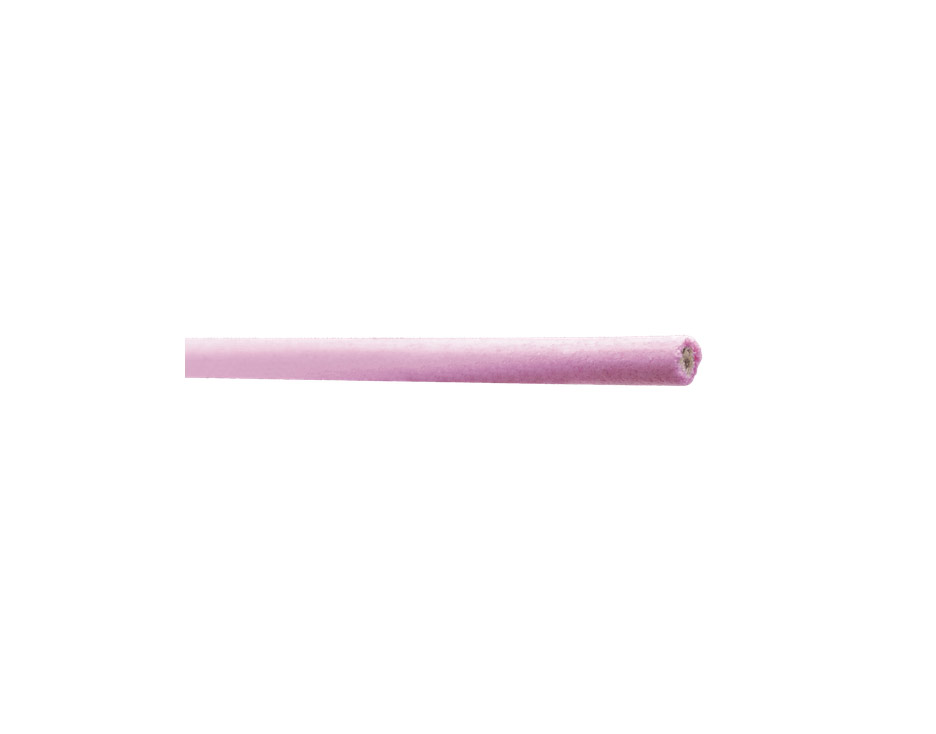

The brass hard solder MH 305 is ideal for brazing steel, galvanized steel sheet, copper, nickel and cast materials. Also suitable as a oxyfuel additive for brass and bronze. With excellent flow properties, reduced corrosion risk and high tensile strength (350–400 N/mm2). Contains 5 rods (Ø 2.0 mm, length 333 mm) with flux jacket.

The CFH brass hard lot MH 305 (Art.-No.: 52305) is the perfect solution for demanding brazing work. It is suitable for steel, galvanized steel sheet, copper, nickel and cast materials and can also be used as an autogen additive for brass and bronze. Thanks to its excellent flow properties, the solder ensures safe and long-lasting connections, reduces the risk of corrosion and prevents cracking. The application is simple: thoroughly clean the solder joint, workpiece on approx. Preheat 400 °C, attach the solder stick and melt the flux. Then at working temperature (approx. 900 °C) heat and distribute solder evenly.

• For brazing steel, galvanized steel sheet, copper, nickel and cast materials
• Also as an autogen additive for welding brass and bronze
• Very good flow properties and high tensile strength
• Cu 670, DIN EN ISO 17672
• FH 21, DIN EN ISO 18496
• Melting/working temperature: approx. 900 °C
• Contents: 5 rods (2.0 mm diameter, 333 mm length)

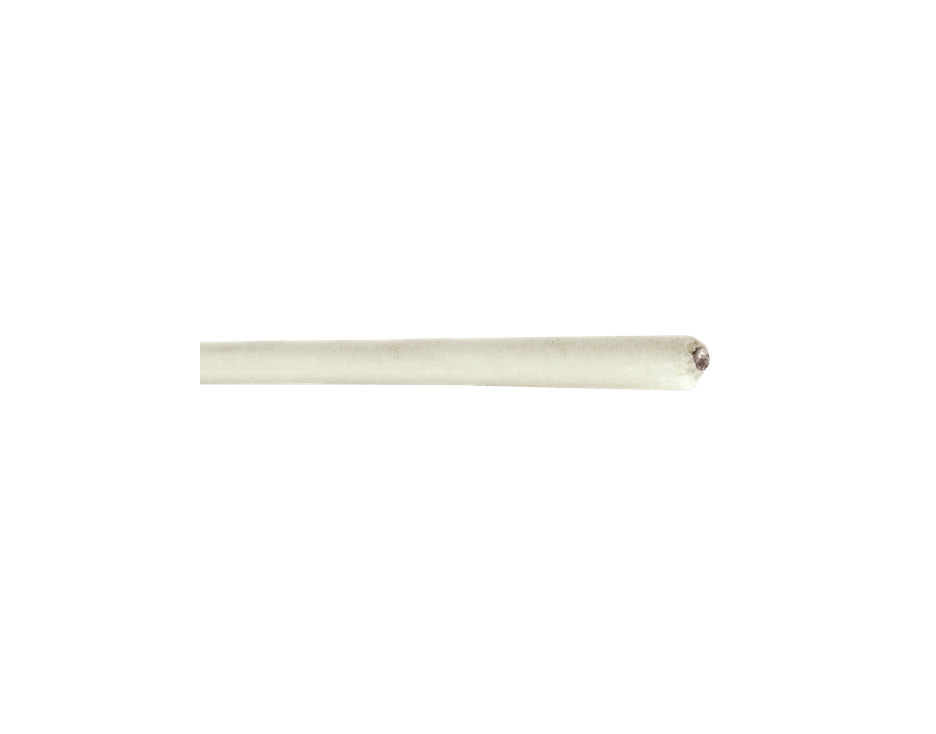

The NH 300 nickel-silver hard solder is ideal for brazing steel, copper, nickel, nickel alloys, cast iron and carbides. Also suitable as welding rod for brass and bronze. With high hardness, tensile strength up to 800 N/mm2 and excellent flow properties. Working temperature approx. 910 °C. Contains 5 rods (Ø 2.0 mm, length 333 mm) with flux jacket.

The CFH nickel silver hard solder NH 300 (Art.-No.: 52300) is the perfect solution for demanding brazing work. It is suitable for steel, copper, nickel, nickel alloys, cast iron and hard metals and can also be used as a welding rod for brass and bronze. Thanks to its nickel-containing composition, it offers high hardness, excellent flow properties and a tensile strength of up to 800 N/mm2 of chromium-nickel steel. The application is simple: thoroughly clean the solder joint, workpiece on approx. Preheat 400 °C, attach the solder stick and melt the flux. Then at working temperature (approx. 910 °C) heat and distribute solder evenly.

• For hard soldering of steel, copper, nickel, nickel alloys, cast iron and carbides
• Also as an autogen additive for welding brass and bronze
• High hardness and tensile strength, high operating temperature and good flow properties
• Cu 670, DIN EN ISO 17672
• FH 21, DIN EN ISO 18496
• Melting/working temperature: approx. 910 °C
• Contents: 5 rods (2.0 mm diameter, 333 mm length)

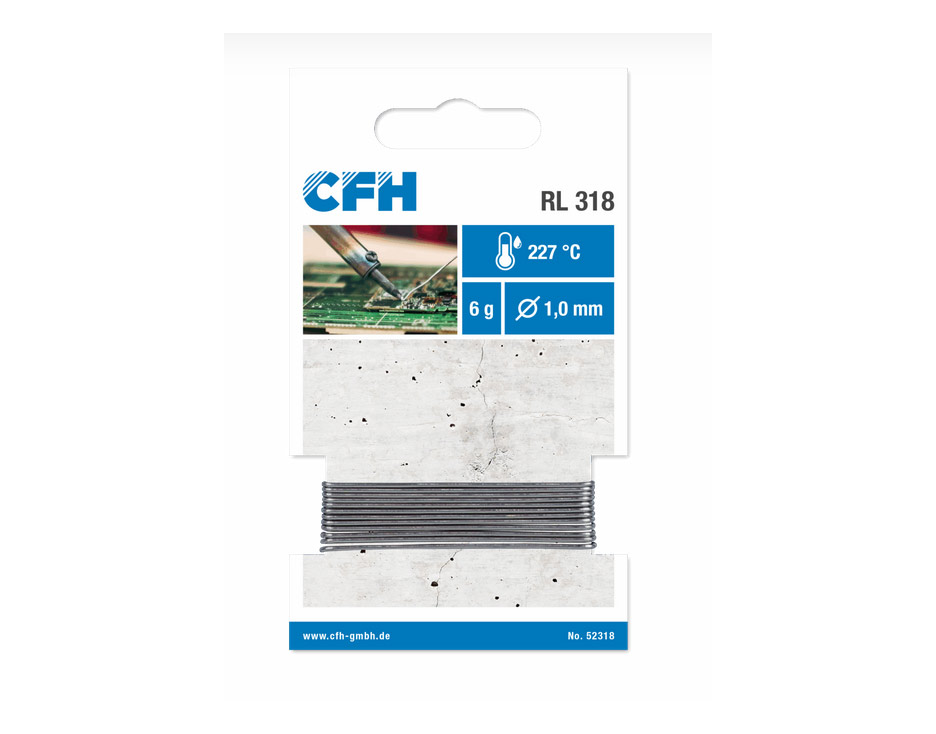

The Radiolot RL 318 is a lead-free, flow-filled soft soldering wire for precise hand soldering in electrical engineering and electromechanics. With halogen-containing activated flux for optimal wetting and excellent propagation values. Ideal for soldering up to 450 °C. Lots on picture cardboard, Ø 1.0 mm, content 6 g – perfect for fine applications.

The CFH Radiolot RL 318 (Art.-No.: 52318) is the ideal solution for precise soldering work in electrical engineering, electromechanics and conditionally also in electronics. The flow-filled, halogen-containing activated soft solder wire convinces with its high temperature resistance, optimum wetting and above-average propagation values. With a composition of Sn99,3Cu0,7, it is lead-free and meets the highest quality standards. Suitable for soldering peak temperatures up to 450 °C (optimally 370–380 °C). The solid flux residues are corrosion-free and can remain on the solder joint. For HV and RF applications, cleaning with PCB cleaners is recommended.

• Flux-filled, halogen-containing activated soft soldering wire for hand soldering in electrical engineering, electromechanics and also conditional in electronics
• High temperature resistance and optimal wetting
• Sn99,3Cu0,7, EN ISO 9453
• EN ISO 9454-1:1123, 2.5% Flux
• Melting/working temperature: approx. 227 °C

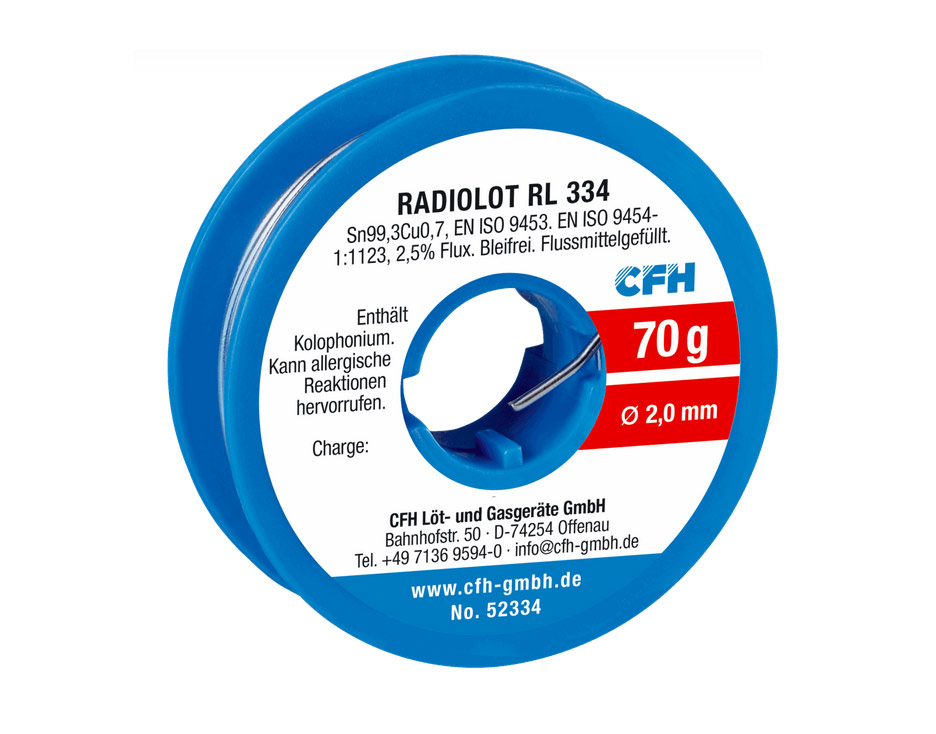

The Radiolot RL 334 is a lead-free, flow-filled soft solder wire for precise hand soldering in electrical engineering and electromechanics. With halogen-containing activated flux for optimal wetting and excellent propagation values. Ideal for soldering up to 450 °C. Coil with 70 g solder, Ø 2.0 mm – perfect for professional applications.

The CFH Radiolot RL 334 (Art.-No.: 52334) is the ideal solution for demanding soldering work in electrical engineering, electromechanics and also in electronics. The flow-filled, halogen-containing activated soft solder wire convinces with its high temperature resistance, optimum wetting and above-average propagation values. With a composition of Sn99,3Cu0,7, it is lead-free and meets the highest quality standards. Suitable for soldering peak temperatures up to 450 °C (optimally 370–380 °C). The solid flux residues are corrosion-free and can remain on the solder joint. For HV and RF applications, cleaning with PCB cleaners is recommended.

• Flux-filled, halogen-containing activated soft soldering wire for hand soldering in electrical engineering, electromechanics and also conditional in electronics
• High temperature resistance and optimal wetting
• Sn99,3Cu0,7, EN ISO 9453
• EN ISO 9454-1:1123, 2.5% Flux
• Melting/working temperature: approx. 227 °C

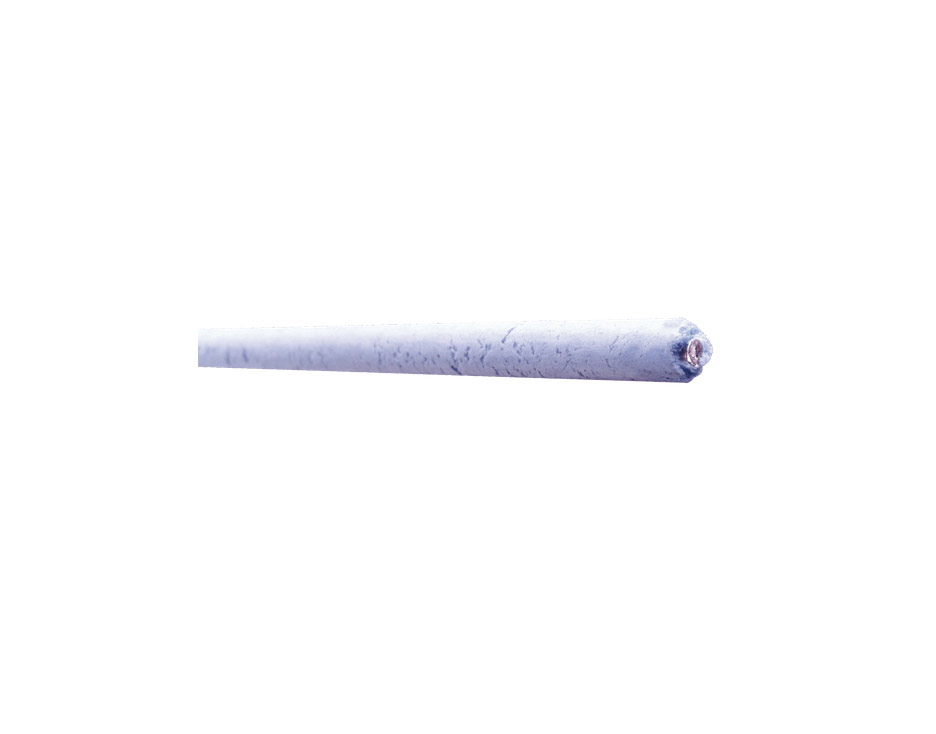

The silver hard solder SH 320 is cadmium-free and ideal for brazing steel, tempered cast iron, copper, nickel and its alloys. With excellent flow properties and high tensile strength (400 N/mm2), it is also suitable for lines of technical gases as well as applications in the medical and food sector. Working temperature approx. 670 °C. 1 rod, Ø 1.5 mm, length 333 mm.

The CFH Silber-Hartlot SH 320 (Art.-No.: 52320) is the premium solution for demanding brazing work. It is suitable for steel, cast iron, copper, nickel and its alloys and is cadmium-free – perfect for use in the medical and food sector. Thanks to its excellent flow properties and a tensile strength of 400 N/mm2, it ensures safe and long-lasting connections. Also suitable for lines in which industrial gases such as oxygen, nitrogen, hydrogen, CO2 and noble gases are transported. The application is simple: clean the solder joint, preheat the workpiece, attach the solder rod and melt the flux jacket. Working temperature approx. 670 °C.

• For brazing steel, cast iron, copper, copper alloys, nickel and nickel alloys
• Suitable for the medical and food sector
• Cadmium-free, very good flow properties and high tensile strength
• Ag 145, DIN EN ISO 17672
• Flux jacket FH 10, DIN EN ISO 18496
• Melting/working temperature: approx. 670 °C
• Contents: 1 rod (1.5 mm diameter, 333 mm length)

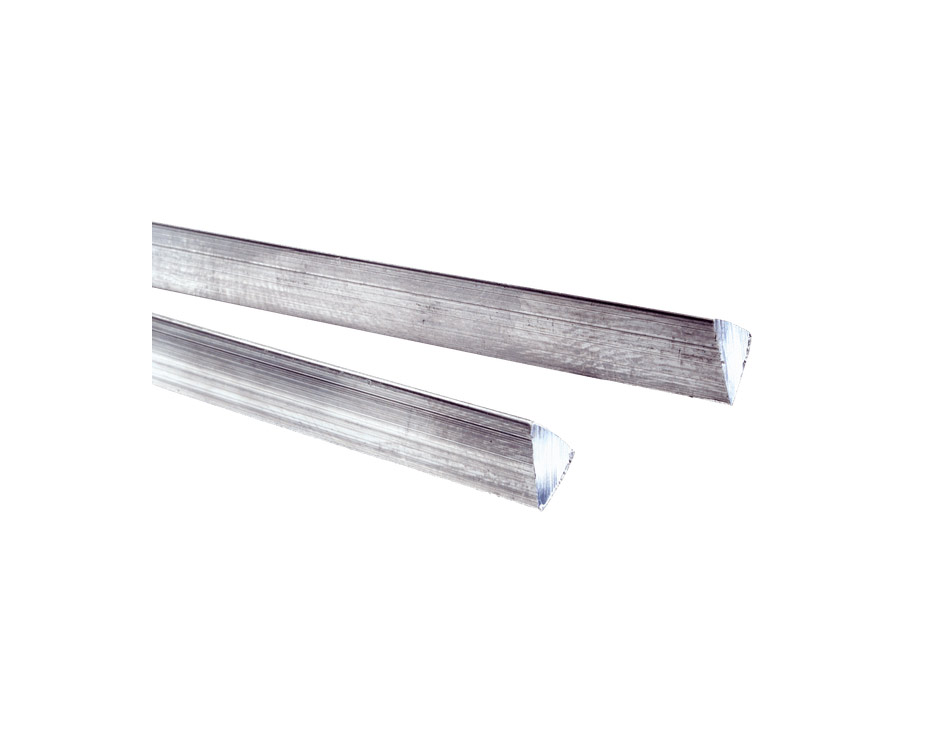

The SK 366 bar soldering tin is ideal for soft soldering copper troughs, downpipes and copper sheets in the roof area – without any pre-kniting. Also suitable for the tinning of copper strands and immersion solders in transformer construction. Lead-free, with excellent capillary effect for safe solder joints. Contains 2 triangular rods of 333 mm.

The CFH rod soldering pin copper sheet SK 366 (Art.-No.: 52366) is the perfect solution for professional soldering work in the roofing area. It is ideal for soft soldering of copper gutters, downpipes and copper sheets – without any prior riveting. In addition, it is a lead-free alternative for the tinning of copper strands and the immersion soldering in transformer construction. Thanks to its composition of Sn97Cu3 and the excellent capillary effect, the solder ensures a complete filling of the solder gap and long-lasting joints. The application is simple: cleaned parts with suitable flux (e.g. B. Treat solder water LWK 368), fix solder in a point-like manner and distribute evenly with the copper soldering iron.

• For soft soldering of copper gutters and downpipes and copper sheets in the roofing area without prior riveting
• Only use in conjunction with solder water copper sheet LWK 368 (CFH-No. 52368)
• Sn97Cu3, DIN EN ISO 9453
• Working/melting temperature: approx. 227 - 310 °C
• Contents: 2 triangular rods of 333 mm

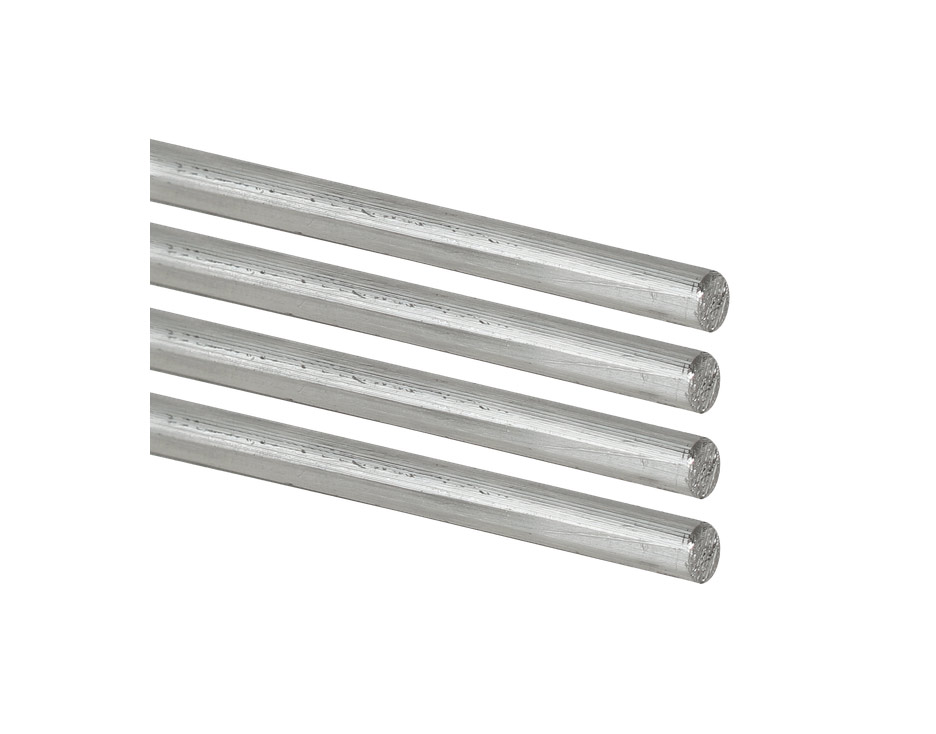

Lead-free rod soldering tin SZ 369 for the soft soldering of zinc and zinc alloys in the roofing area. It convinces with excellent flow and wetting properties and meets the DIN EN ISO 9453 standard. Ideal for precise soldering joints with copper soldering iron. Contents: 4 rods of 395 mm (850 g).

The CFH rod soldering machine SZ 369 (Art.-No.: 52369) is the perfect solution for professional soldering work on zinc sheets and zinc alloys (titanium ink) in the roof area. The lead-free solder (Sn91Zn9) offers excellent flow and wetting properties, creating clean and stable solder joints. With a working temperature of approx. The product is ideal for use with copper soldering iron. Before application, the workpieces should be thoroughly cleaned and prepared with suitable flux, such as the CFH soldering water LWZ 372. The rod shape allows easy handling and precise work. The product complies with the DIN EN ISO 9453 standard and guarantees the highest quality for long-lasting results.

• For soft soldering of rolling edge and coated zinc and zinc alloys (titanium ink) in the roofing area
• Only use in combination with solder water zinc sheet LWZ 372 (Art.-No.: 52372)
• Sn91Zn9, DIN EN ISO 9453
• Working/melting temperature: approx. 200 °C
• Capacity: 4 rods of 395 mm

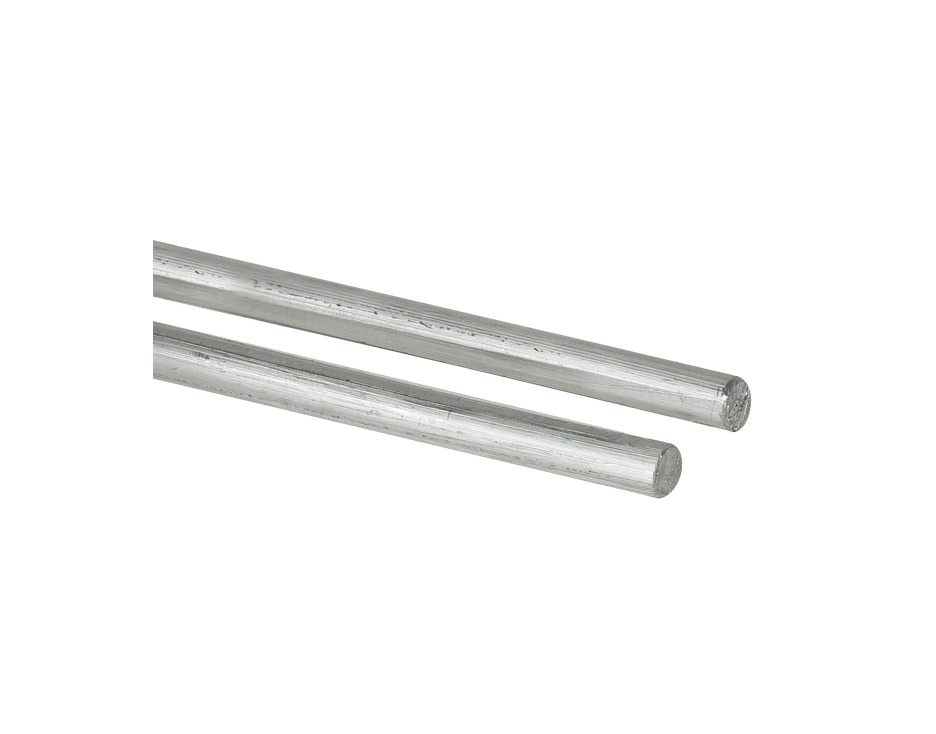

Lead-free rod soldering tin SZ 377 for soft soldering of zinc and zinc alloys (titanium ink) in the roofing area. It offers excellent flow and wetting properties and meets the DIN EN ISO 9453 standard. Ideal for precise soldering joints with copper soldering iron. Content: 2 rods of 295 mm.

The CFH rod soldering tin SZ 377 (Art.-No.: 52377) is the ideal solution for professional soldering work on zinc sheets and zinc alloys (titanium ink) in the roof area. The lead-free solder (Sn91Zn9) convinces with excellent flow and wetting properties that ensure clean and stable soldering joints. With a working temperature of approx. The product is 200 °C perfect for use with copper soldering iron. Before application, the workpieces should be thoroughly cleaned and prepared with suitable flux, such as the CFH soldering water LWZ 372. The compact rod shape allows easy handling and precise working. The product complies with the DIN EN ISO 9453 standard and guarantees the highest quality for long-lasting results.

• For soft soldering of rolling edge and coated zinc and zinc alloys (titanium ink) in the roofing area
• Only use in combination with solder water zinc sheet LWZ 372 (Art.-No.: 52372)
• Sn91Zn9, DIN EN ISO 9453
• Working/melting temperature: approx. 200 °C
• Contents: 2 rods of 395 mm
• Mobile and handy – perfect for construction, workshop and hobby
• TÜV SÜD certified according to DIN EN 521:2020
• Compatible with CFH anti-pitch cartridge CF 211

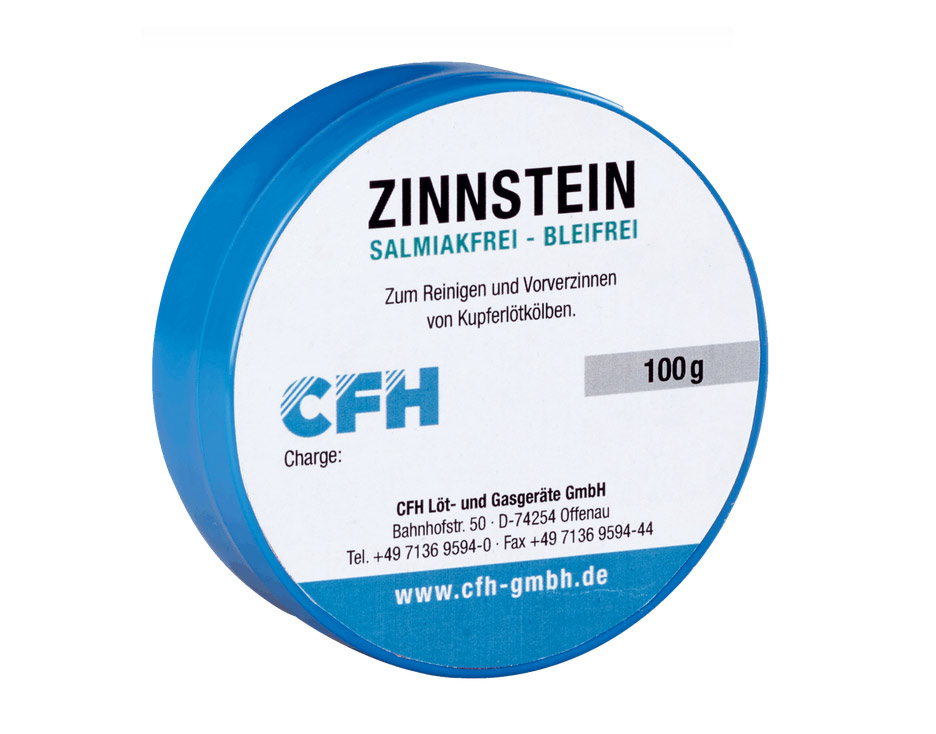

The CFH Zinnstein ZS 231 is ideal for pre-tinning, cleaning and maintaining copper soldering tips in one operation. It reduces smoke and odor load and ensures a long service life of the soldering tip. Salmiak- and lead-free, packed in a practical, resealable metal can. Content: 100 g.

The CFH Zinnstein ZS 231 (Art.-No.: 52231) is an indispensable accessory for electric soldering equipment and copper soldering iron. It enables pre-tinning, cleaning and maintenance of copper soldering tips in a single operation – for clean and durable solder joints. Thanks to its special composition of pressed metal powder (S-Sn97Cu3) with inorganic activators, the tin stone is salmiak- and lead-free and reduces smoke and odor exposure during work. The application is very simple: the hot soldering tip is pressed into the tin stone with a slight pressure, which melts the solder and the tip is optimally cleaned and tinned. Delivered in a practical, resealable metal can for safe storage.

• For pre-tinning, cleaning and maintenance of copper soldering tips in one operation
• Reduces user smoke and odor pollution
• Pressed metal powder S-Sn97Cu3 with inorganic activators in resealable metal can
• Salmiak- and lead-free
