TC wood twist drill bit TURBOWOOD by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Carbide cutting tip
- Patented, self-cutting centring tip
- With carvers
- Double chamfer
- Ground shaft
- Grey blasted surface
FOR USE IN / APPLICATION
- Especially suitable for hardwood
- Recommended speed of 1400 to 3500 rpm, depending on material and hole diameter
- In all rotary and percussion drilling machines
- In machines for mechanical processing
Wood twist drill bit by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Similar to DIN 7487
- Double chamfer from 5 mm Ø for Art. 180
- Milled and hardened
- Made of CV-alloyed silver steel
- CBN ground tip
- With carvers
- Burnished and ground surface
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
HSS wood twist drill bit by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- High-performance high-speed steel
- Milled flute
- 2 guiding phases bevels for better drill hole guidance
- Large groove for optimal chip flow
- Self cutting centre tip
FOR USE IN / APPLICATION
- Especially suitable for furniture making
- Recommended speed of 1400 to 3500 rpm, depending on material and hole diameter
- In all rotary and percussion drilling machines as well as CNC machines
- In machines for mechanical processing
- Exact, accurately centered and splinter free drilling in coated panel materials, chipboards, MDF-fiberboards as well as plastic and all kinds of soft and hard woods.
Wood twist drill bit KEILBIT by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground
- Made of CV-alloyed silver steel
- Ground carbide tip
- With carvers
- Short, cylindrical
- 1/4“ bit drive DIN 3126 - C 6.3
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- In all drilling machines, cordless screw drivers and bit holders with 1/4“ drill shank

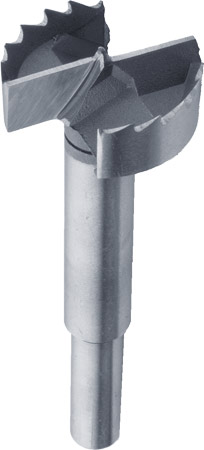

Machine forstner drill bit, toothed by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Forged from special steel
- Machine-ground to round shape
- According to DIN 7483
- Denticulated implementation from D=25mm
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- Precise and splinter-free drilling with point accuracy in veneered boards and natural wood
Auger bit lewis shape by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Wood drill bit with threaded tip
- Carver and hexagonal shank
- With milled and ground spiral
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- Precise and splinter-free drilling with point accuracy in veneered boards and all natural softwood and hardwood
Flat bit KEILBIT by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Tip and cutting edges profile ground
- Right-hand cutting
- Hardened tool steel
- 1/4“ bit drive DIN 3126 - E 6.3
FOR USE IN / APPLICATION
- For drilling in soft wood, beams and chip board Application
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- In all drilling machines, cordless screw drivers and bit holders with 1/4“ drill shank
Drill bit for timbering, round shank by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Safety specification according to the Employer‘s Liability Insurance Association for Wood standard
- Optimum removal of drilling dust
- 90° tip angle
- Blasted surface
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- To break through outer and inner covering boards in one operation
- Largest clamping shank (d) 13 mm Ø
SDS-plus drill bit for timbering by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Safety specification according to the Employer‘s Liability Insurance Association for Wood standard
- Optimum removal of drilling dust
- 90° tip angle
- Blasted surface
FOR USE IN / APPLICATION
- Fits directly into all hammer drilling machines with SDS-plus and HILTI TE-C drive
- To break through outer and inner covering boards in one operation
